Cross-sectional anatomy is the study of body structures as they appear in slices. Computed tomography (CT) uses X-rays to create these images; an axial slice cuts across the body in the transverse plane, separating upper and lower portions. Axial images are conventionally viewed from the feet, placing the patient's right on the image left.
Which way round is an axial CT image?
Imagine standing at the patient's feet and looking towards the head while the patient lies on their back. In the usual axial display, the patient's right is on your left, and the patient's left is on your right. The front of the body is usually at the top of the image, and the back is at the bottom.
The anatomical terms anterior and posterior mean towards the front and towards the back. Medial means towards the body's midline, while lateral means away from it. These directions describe the patient, not the person viewing the image.
Orientation labels should take priority over assumptions about the display. R and L indicate the patient's right and left; A and P indicate anterior and posterior. Once those directions are established, keep them fixed as you move through the slices.
An axial slice is not a front view of the body. Structures that extend from head to foot may appear as small round or oval profiles because the plane cuts across their length.
Why are some tissues bright and others dark on CT?
CT brightness reflects attenuation, the extent to which a tissue reduces the X-ray beam passing through it. Tissues that attenuate more generally appear brighter. The displayed shades also depend on the chosen window, the range of attenuation values mapped onto the image's greyscale.
- Bone: the dense outer shell is usually very bright. Its inner region may be less bright because it contains marrow and a network of bony struts.
- Soft tissue: muscles, organs and blood vessels usually appear in intermediate shades of grey. Different soft tissues can have similar brightness, so position and shape are essential clues.
- Fat: usually looks darker than muscle and most solid organs. Fat around an organ can make its outer boundary easier to recognise.
- Air: appears very dark, usually black. It contributes to the dark appearance of airways, aerated lung tissue and gas within the digestive tract.
A structure does not have one fixed shade in every CT image. Contrast material, a substance used to make some structures more visible, can make blood within vessels and parts of organs appear brighter. Different display windows also emphasise different tissues without changing their anatomical positions.
How do you orient yourself step by step?
Begin with orientation, then locate stable landmarks, and only then name individual organs. In the trunk, a vertebra—the individual bone forming part of the vertebral column—and the aorta, the main artery carrying blood from the heart to the body, provide useful anchors. They are not available on every slice, particularly in the head, limbs or lowest pelvis.
- Check the directions. Confirm patient right and left from the labels, then identify anterior and posterior.
- Find the vertebra. Its body, the thick front portion, lies near the posterior midline. Behind it is the vertebral canal, the passage containing the spinal cord and, at lower levels, spinal nerve roots.
- Find the aorta where it is present. In much of the chest it lies to the patient's left of the vertebral body; in the abdomen it lies in front of the vertebral bodies, usually slightly left of the midline.
- Identify the body region and large organs. Use the surrounding bones, air-filled spaces and organ outlines rather than brightness alone.
- Follow structures through neighbouring slices. A vessel, airway or organ is easier to recognise when its course and changing shape are visible across several images.
The aorta changes direction in the upper chest and divides into the common iliac arteries in the lower abdomen. Do not expect the same landmark arrangement at every level.
Which landmarks help identify the level of a slice?
A landmark level is a recognisable region in a sequence of slices, not necessarily one exact image. Breathing, body position and individual anatomy influence where structures appear. Use combinations of landmarks rather than assigning a level from one feature alone.
| Landmark | What to recognise | What it helps establish |
|---|---|---|
| Carina | The internal ridge where the trachea divides into the main bronchi | The central chest near the airway division |
| Diaphragm domes | The curved upper surfaces of the muscle separating chest and abdomen | The transition between lower chest and upper abdomen |
| Kidneys | Paired organs towards the back of the abdomen, beside the spine | The posterior abdominal region |
| Iliac crests | The upper curved borders of the broad hip bones | The lower abdomen approaching the pelvis |
The trachea is the main airway leading from the neck into the chest; the bronchi are its branches entering the lungs. The diaphragm is the muscular partition between chest and abdomen and the principal muscle of breathing.
Because the diaphragm is curved, one axial slice can include both chest and abdominal structures. The right dome is usually higher than the left, with the liver, a large solid abdominal organ, immediately beneath it.
What should you recognise in chest slices?
Each lung, an organ containing branching airways and air spaces, occupies one side of the chest. Aerated regions appear dark, while vessels and airway walls form lighter markings. Ribs outline much of the chest wall, and the vertebra provides a posterior reference.
Between the lungs is the mediastinum, the central compartment of the chest. It contains the heart, the muscular organ that pumps blood, along with major vessels, the trachea and the oesophagus, the tube carrying swallowed material towards the abdomen. Their profiles change as you move through the chest.
Near the carina, look for the airway dividing into right and left main bronchi. On lower slices, the heart occupies more of the central and anterior chest. Near the diaphragm, abdominal organs begin to replace the air-filled regions on successive images.
How do you recognise abdominal organs and the pelvic transition?
Each kidney, an organ that filters blood and forms urine, lies towards the back of the abdomen. The kidneys are retroperitoneal, meaning behind the peritoneum, the membrane that lines the abdominal cavity and covers many abdominal organs. The right kidney is usually lower than the left.
The liver occupies much of the right upper abdomen. The spleen, a blood-filtering lymphatic organ, lies in the left upper abdomen, beside the stomach, the muscular part of the digestive tract between the oesophagus and small intestine. Stomach contents can include gas and fluid, so its interior need not have a uniform appearance.
Towards the iliac crests, the broad hip bones become useful lateral landmarks. The aorta divides into arteries that pass towards either side of the pelvis. Continue following structures through adjacent slices rather than trying to identify every soft-tissue profile in isolation.
How do CT slices relate to a segmented 3D model?

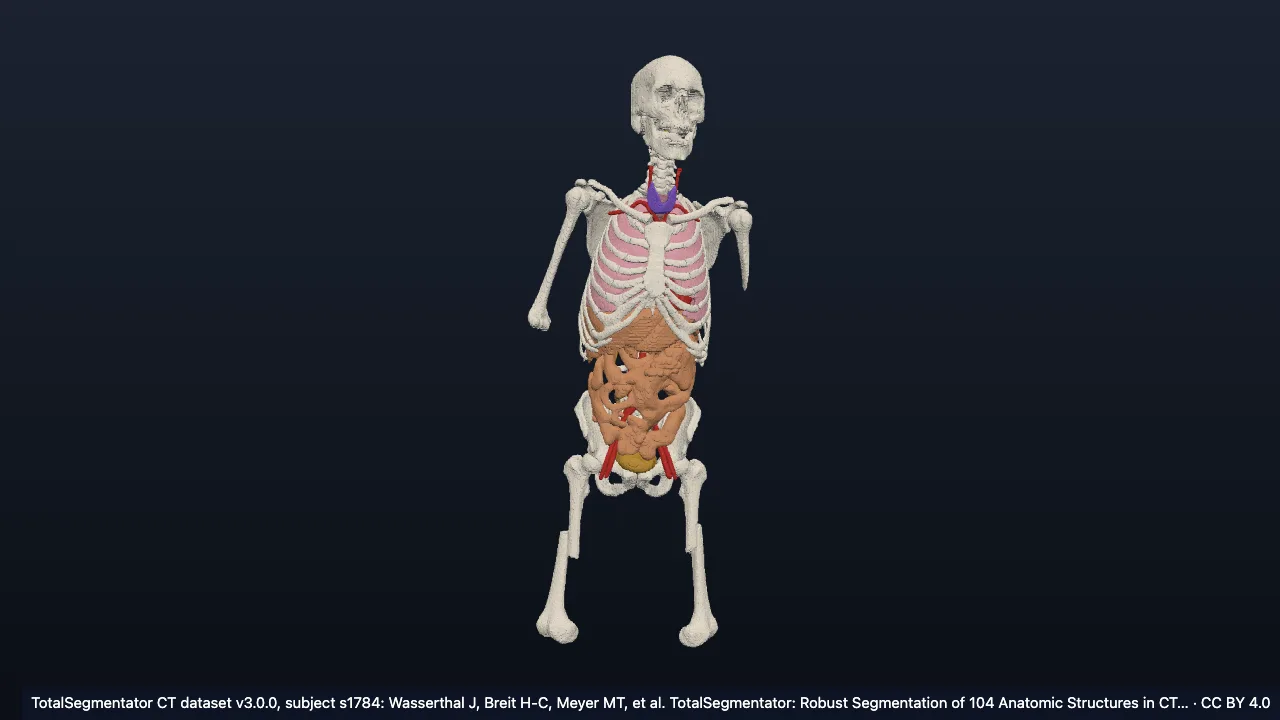

Segmentation means identifying the image regions belonging to a particular structure across successive slices. These regions can be combined to reconstruct that structure's three-dimensional shape. Real-case atlases built from CT segmentations represent the anatomy of the scanned individual rather than a single idealised arrangement.
A slice is a flat intersection through a volume; a 3D reconstruction brings the labelled regions together. This helps explain why one organ can appear as several separate profiles on a slice, or why its outline changes markedly between levels. A reconstructed surface is not the same as the original CT image and does not preserve all its greyscale information.
In the 3D model next to this article, you can rotate and zoom, select and isolate a structure, or cut a section along the transverse plane. The sagittal plane separates left and right portions, while the coronal plane separates front and back portions; sections along these planes offer complementary ways to understand spatial relationships.
